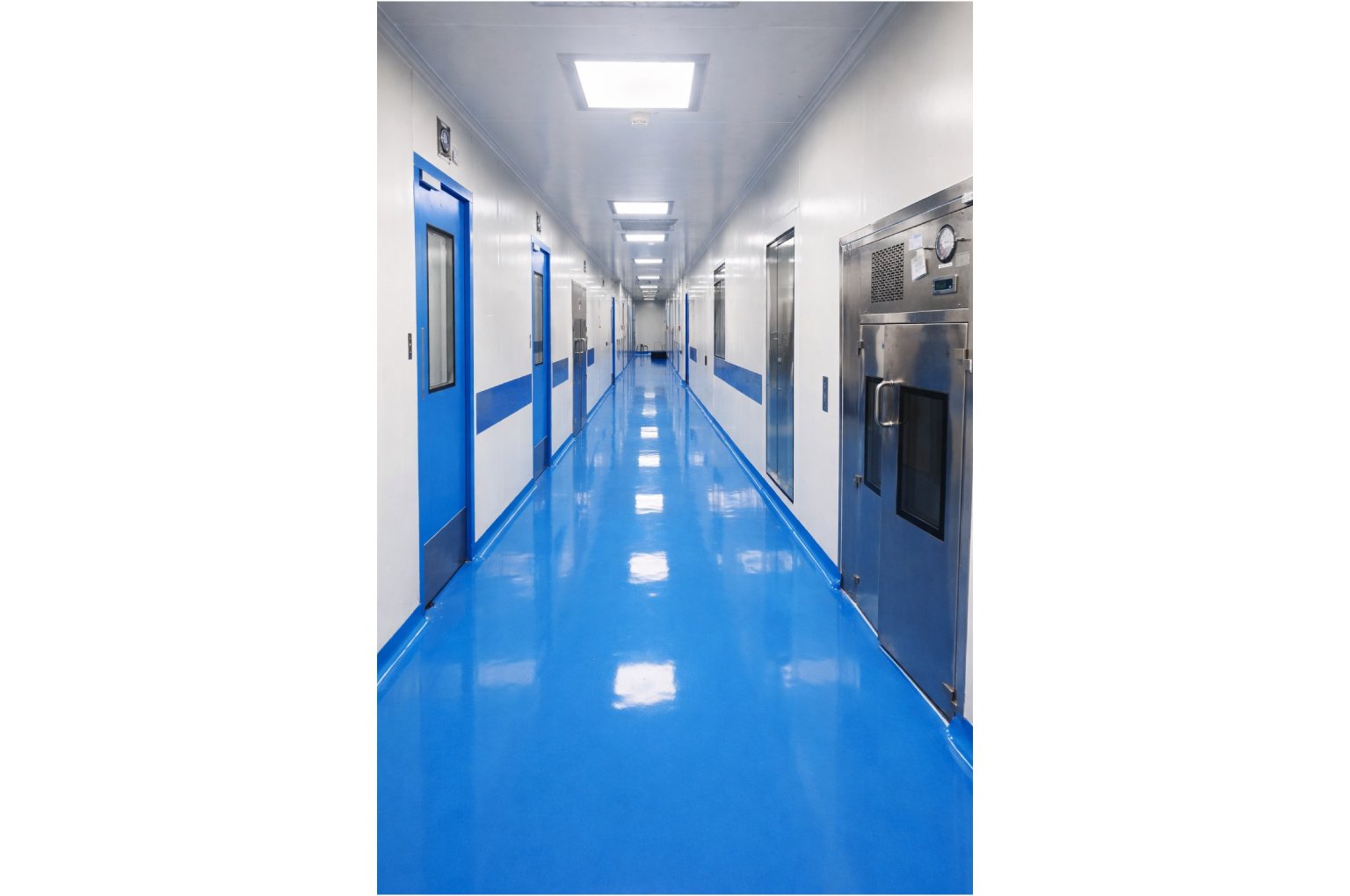

Modular Cleanroom Construction

ICECUBE designs and builds modular cleanrooms for the most regulated industries, fully compliant with international standards. Our cleanroom solutions cover.

ICECUBE cleanroom partition walls and ceiling system offer comprehensive modular solutions designed to meet the specific technical requirements of various controlled environments . our panels are available in multiple configuration making them suitable for most clean room classification, including ISO-I4644, EUGMP, USFDA and other industry - specific standards

Cleanroom Panel Systems

• Particle free surface: PCGI, PPGI, SS, HPL, GRP
• Types: Wall Panels, Ceiling Panels & Riser Panels in non progressive type
• Core Options: PUF, Rockwool, PIR Infill
• Double skin panel made of Thickness Range: / 50 / 80 / 100 mm
• Sheet Thickness: 0.5 mm to 1.2 mm

Modular Clean Room Doors

ICECUBE's Clean Room doors are crafted from galvanized or stainless steel sheets with lock-formed edges. These doors are insulated and bonded with polyurethane foam, honeycomb paper, or mineral wool, creating a rigid, flush fitting. They feature innovative flush double glazing, finished with a pure polyester powder coating of 60-80 microns for a smooth surface finish.

• Standard Door Specifications: Type — Single/Double Leaf
• Leaf Thickness — 44 mm (or as per specific requirement)
• Leaf & Frame — Galvanized Steel, Stainless Steel
• Door Leaf — 44 mm thick, Shutter standard sheet thickness 0.6 mm to 0.8 mm thick or as per; specific requirement.
• Door Frame — Extruded Aluminium powder coated profile frame/ GI powder coated frame/ SS 304 frame.
• Infill PUF/Rockwool/Honeycomb
• Reinforcements — At hinges, door closer and lock case fitments
• Finish — Doors are coated with either pure polyester or epoxy polyester powder achieving a coating thickness of 60-80 microns. (Powder coating available in standard RAL colours)
• Glazing — 5-6 mm thick toughened glass/float glass
• Ironmongery — SS Ball Bearing hinges, Latch Lock, Dead Lock, Door Closer, D Handle, Push Plates, Kick Plates, Automatic Bottom Drop Seal, Panic Bar for emergency doors, etc
• Door opening — Left or right as needed Construction can be tailored to meet specific requirements.

Cleanroom Standards Complied:

ISO 14644 (110) | WHO | EU GMP | USP Standards | FDA Guidelines | USP 797, 800
